Kubernetes monitoring with VictoriaMetrics Cluster #

This guide walks you through deploying a VictoriaMetrics cluster version on Kubernetes.

By the end of this guide, you will know:

How to install and configure VictoriaMetrics cluster version using Helm.
How to scrape metrics from Kubernetes components using service discovery.
How to store metrics in VictoriaMetrics time-series database.
How to visualize metrics in Grafana

We will use:

Note

We use a GKE cluster from GCP , but this guide can also be applied to any Kubernetes cluster. For example, Amazon EKS or an on-premises cluster.

1. VictoriaMetrics Helm repository #

To start, add the VictoriaMetrics Helm repository with the following commands:

      helm repo add vm https://victoriametrics.github.io/helm-charts/
helm repo update

To verify that everything is set up correctly, you may run this command:

      helm search repo vm/

You should see a list similar to this:

      NAME                                    CHART VERSION   APP VERSION     DESCRIPTION
vm/victoria-metrics-cluster             0.34.0          v1.135.0        VictoriaMetrics Cluster version - high-performa...
vm/victoria-metrics-agent               0.31.0          v1.135.0        VictoriaMetrics Agent - collects metrics from v...
...(the list continues)...


2. Install VictoriaMetrics Cluster from the Helm chart #

A VictoriaMetrics cluster consists of three services:

vminsert: receives incoming metrics and distributes them across vmstorage nodes via consistent hashing on metric names and labels.
vmstorage: stores raw data and serves queries filtered by time range and labels.
vmselect: executes queries by fetching data across all configured vmstorage nodes.

To get started, create a config file for the VictoriaMetrics Helm chart:

      cat <<EOF >victoria-metrics-cluster-values.yml
vmselect:
  podAnnotations:
      prometheus.io/scrape: "true"
      prometheus.io/port: "8481"

vminsert:
  podAnnotations:
      prometheus.io/scrape: "true"
      prometheus.io/port: "8480"

vmstorage:
  podAnnotations:
      prometheus.io/scrape: "true"
      prometheus.io/port: "8482"
EOF


The config file defines two settings for the VictoriaMetrics services:

podAnnotations: prometheus.io/scrape: "true" enables automatic service discovery and metric scraping from the VictoriaMetrics pods.
podAnnotations:prometheus.io/port: "<port-number>" defines which port numbers to target for scraping metrics from the VictoriaMetrics pods.

Next, install VictoriaMetrics cluster version with the following command:

      helm install vmcluster vm/victoria-metrics-cluster -f victoria-metrics-cluster-values.yml

The expected output should look like this:

      NAME: vmcluster
LAST DEPLOYED: Wed Feb  4 12:00:55 2026
NAMESPACE: default
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
TEST SUITE: None
NOTES:
Write API:

The Victoria Metrics write api can be accessed via port 8480 with the following DNS name from within your cluster:
vmcluster-victoria-metrics-cluster-vminsert.default.svc.cluster.local.

Get the Victoria Metrics insert service URL by running these commands in the same shell:
  export POD_NAME=$(kubectl get pods --namespace default -l "app=" -o jsonpath="{.items[0].metadata.name}")
  kubectl --namespace default port-forward $POD_NAME 8480

You need to update your Prometheus configuration file and add the following lines to it:

prometheus.yml

    remote_write:
      - url: "http://<insert-service>/insert/0/prometheus/"

for example -  inside the Kubernetes cluster:

    remote_write:
      - url: http://vmcluster-victoria-metrics-cluster-vminsert.default.svc.cluster.local.:8480/insert/0/prometheus/
Read API:

The VictoriaMetrics read api can be accessed via port 8481 with the following DNS name from within your cluster:
vmcluster-victoria-metrics-cluster-vmselect.default.svc.cluster.local.

Get the VictoriaMetrics select service URL by running these commands in the same shell:
  export POD_NAME=$(kubectl get pods --namespace default -l "app=" -o jsonpath="{.items[0].metadata.name}")
  kubectl --namespace default port-forward $POD_NAME 8481

You need to specify select service URL into your Grafana:
 NOTE: you need to use the Prometheus Data Source

Input this URL field into Grafana

    http://<select-service>/select/0/prometheus/


for example - inside the Kubernetes cluster:

    http://vmcluster-victoria-metrics-cluster-vmselect.default.svc.cluster.local.:8481/select/0/prometheus/


Note the following endpoint URLs:

The remote_write URL will be required on Step 3 to configure where the vmagent service sends telemetry data.

          remote_write:
      - url: http://vmcluster-victoria-metrics-cluster-vminsert.default.svc.cluster.local.:8480/insert/0/prometheus/

The VictoriaMetrics read api will be required on Step 4 to configure the Grafana datasource.

      The VictoriaMetrics read api can be accessed via port 8481 with the following DNS name from within your cluster:
vmcluster-victoria-metrics-cluster-vmselect.default.svc.cluster.local.

Verify that VictoriaMetrics cluster pods are up and running by executing the following command:

      kubectl get pods

You should see a list of pods similar to this:

      NAME                                                           READY   STATUS    RESTARTS   AGE
vmcluster-victoria-metrics-cluster-vminsert-689cbc8f55-95szg   1/1     Running   0          16m
vmcluster-victoria-metrics-cluster-vminsert-689cbc8f55-f852l   1/1     Running   0          16m
vmcluster-victoria-metrics-cluster-vmselect-977d74cdf-bbgp5    1/1     Running   0          16m
vmcluster-victoria-metrics-cluster-vmselect-977d74cdf-vzp6z    1/1     Running   0          16m
vmcluster-victoria-metrics-cluster-vmstorage-0                 1/1     Running   0          16m
vmcluster-victoria-metrics-cluster-vmstorage-1                 1/1     Running   0          16m


3. Install vmagent from the Helm chart #

In order to collect metrics from the Kubernetes cluster, we need to install vmagent . This service scrapes, relabels, and sends metrics to the vminsert service running in the cluster.

Run the following command to install the vmagent service in your cluster:

      helm install vmagent vm/victoria-metrics-agent -f https://docs.victoriametrics.com/guides/examples/guide-vmcluster-vmagent-values.yaml

Here are the key settings in the chart values file guide-vmcluster-vmagent-values.yaml:

remoteWrite defines the vminsert endpoint that receives telemetry from vmagent . This value should match exactly the URL for the remote_write in the output of Step 2 .
```
      remoteWrite:
  - url: http://vmcluster-victoria-metrics-cluster-vminsert.default.svc.cluster.local:8480/insert/0/prometheus/

```

metric_relabel_configs defines label-rewriting rules that help us show Kubernetes metrics in the Grafana dashboard later on.

            metric_relabel_configs:
        - action: replace
          source_labels: [pod]
          regex: '(.+)'
          target_label: pod_name
          replacement: '${1}'
        - action: replace
          source_labels: [container]
          regex: '(.+)'
          target_label: container_name
          replacement: '${1}'
        - action: replace
          target_label: name
          replacement: k8s_stub
        - action: replace
          source_labels: [id]
          regex: '^/system\.slice/(.+)\.service$'
          target_label: systemd_service_name
          replacement: '${1}'


Verify that vmagent’s pod is up and running by executing the following command:

      kubectl get pods | grep vmagent

Check that the pod is in Running state:

      vmagent-victoria-metrics-agent-69974b95b4-mhjph                1/1     Running   0          11m

4. Install and connect Grafana to VictoriaMetrics with Helm #

Add the Grafana Community Helm repository:

      helm repo add grafana-community https://grafana-community.github.io/helm-charts
helm repo update

Tip

See more information on Grafana in ArtifactHUB

Create a values config file to define the data sources and dashboards for VictoriaMetrics in the Grafana service:

      cat <<EOF > grafana-cluster-values.yml
  datasources:
    datasources.yaml:
      apiVersion: 1
      datasources:
        - name: victoriametrics
          type: prometheus
          orgId: 1
          url: http://vmcluster-victoria-metrics-cluster-vmselect.default.svc.cluster.local:8481/select/0/prometheus/
          access: proxy
          isDefault: true
          updateIntervalSeconds: 10
          editable: true

  dashboardProviders:
   dashboardproviders.yaml:
     apiVersion: 1
     providers:
     - name: 'default'
       orgId: 1
       folder: ''
       type: file
       disableDeletion: true
       editable: true
       options:
         path: /var/lib/grafana/dashboards/default

  dashboards:
    default:
      victoriametrics:
        gnetId: 11176
        datasource: victoriametrics
      vmagent:
        gnetId: 12683
        datasource: victoriametrics
      kubernetes:
        gnetId: 14205
        datasource: victoriametrics
EOF


The config file defines the following settings for Grafana:

Provides a VictoriaMetrics data source. This value must match the VictoriaMetrics read api endpoint and port obtained in Step 2 during the VictoriaMetrics cluster installation.
Adds three starter dashboards:
- VictoriaMetrics - cluster for the VictoriaMetrics cluster .
- VictoriaMetrics - vmagent for the VictoriaMetrics agent .
- Kubernetes cluster Monitoring (via Prometheus) to show Kubernetes cluster metrics.

Run the following command to install the Grafana chart with the name my-grafana:

      helm install my-grafana grafana-community/grafana -f grafana-cluster-values.yml

You should get the following output:

      NAME: my-grafana
LAST DEPLOYED: Wed Feb  4 15:00:28 2026
NAMESPACE: default
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
NOTES:
1. Get your 'admin' user password by running:

   kubectl get secret --namespace default my-grafana -o jsonpath="{.data.admin-password}" | base64 --decode ; echo


2. The Grafana server can be accessed via port 80 on the following DNS name from within your cluster:

   my-grafana.default.svc.cluster.local

   Get the Grafana URL to visit by running these commands in the same shell:
     export POD_NAME=$(kubectl get pods --namespace default -l "app.kubernetes.io/name=grafana,app.kubernetes.io/instance=my-grafana" -o jsonpath="{.items[0].metadata.name}")
     kubectl --namespace default port-forward $POD_NAME 3000

3. Login with the password from step 1 and the username: admin
#################################################################################
######   WARNING: Persistence is disabled!!! You will lose your data when   #####
######            the Grafana pod is terminated.                            #####
#################################################################################


Use the first command in the output to obtain the password for the admin user:

      kubectl get secret --namespace default my-grafana -o jsonpath="{.data.admin-password}" | base64 --decode ; echo


The second part of the output shows how to port-forward the Grafana service in order to access it locally on 127.0.0.1:3000:

      export pod_name=$(kubectl get pods --namespace default -l "app.kubernetes.io/name=grafana,app.kubernetes.io/instance=my-grafana" -o jsonpath="{.items[0].metadata.name}")

kubectl --namespace default port-forward $pod_name 3000

5. Check the result you obtained in your browser #

To check that VictoriaMetrics collects metrics from the Kubernetes cluster, open in your browser http://127.0.0.1:3000/dashboards. Use admin for login and password obtained in the previous step.

You should see three dashboards installed. Select “Kubernetes Cluster Monitoring”.

List of pre-installed dashboards in Grafana

This is the main dashboard, which shows activity across your Kubernetes cluster:

Grafana dashboard for Kubernetes metrics

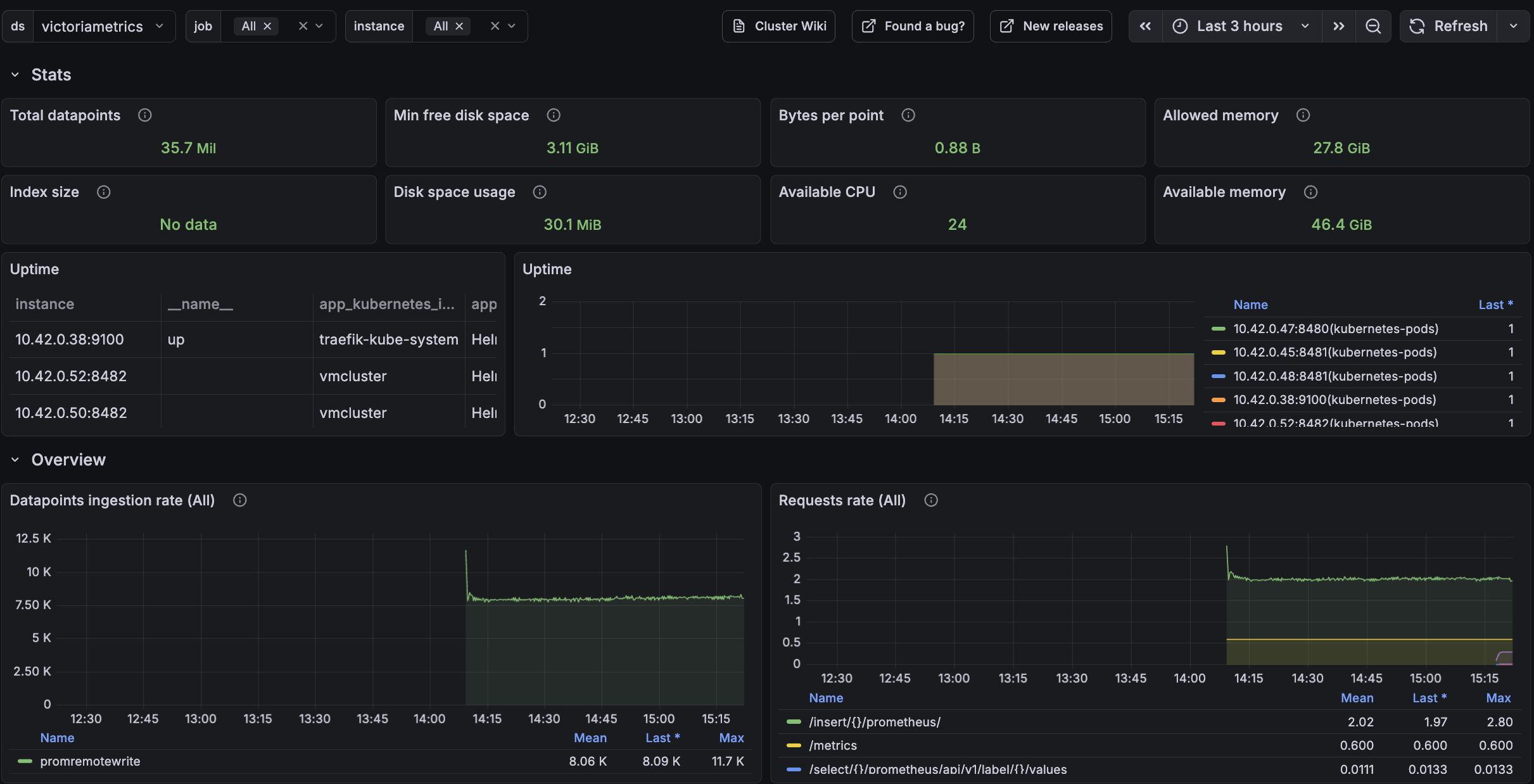

The VictoriaMetrics cluster dashboard is also available to monitor telemetry ingestion and resource utilization:

Grafana dashboard for VictoriaMetrics services

And vmagent has a separate dashboard to monitor scraping and queue activity:

Grafana dashboard for vmagent ingestion and resource usage

6. Final thoughts #

We set up a TimeSeries Database for your Kubernetes cluster.
We collected metrics from all running pods, nodes, and services and stored them in a VictoriaMetrics database.
We visualized resources used in the Kubernetes cluster by using Grafana dashboards.

Consider reading these resources to complete your setup:
