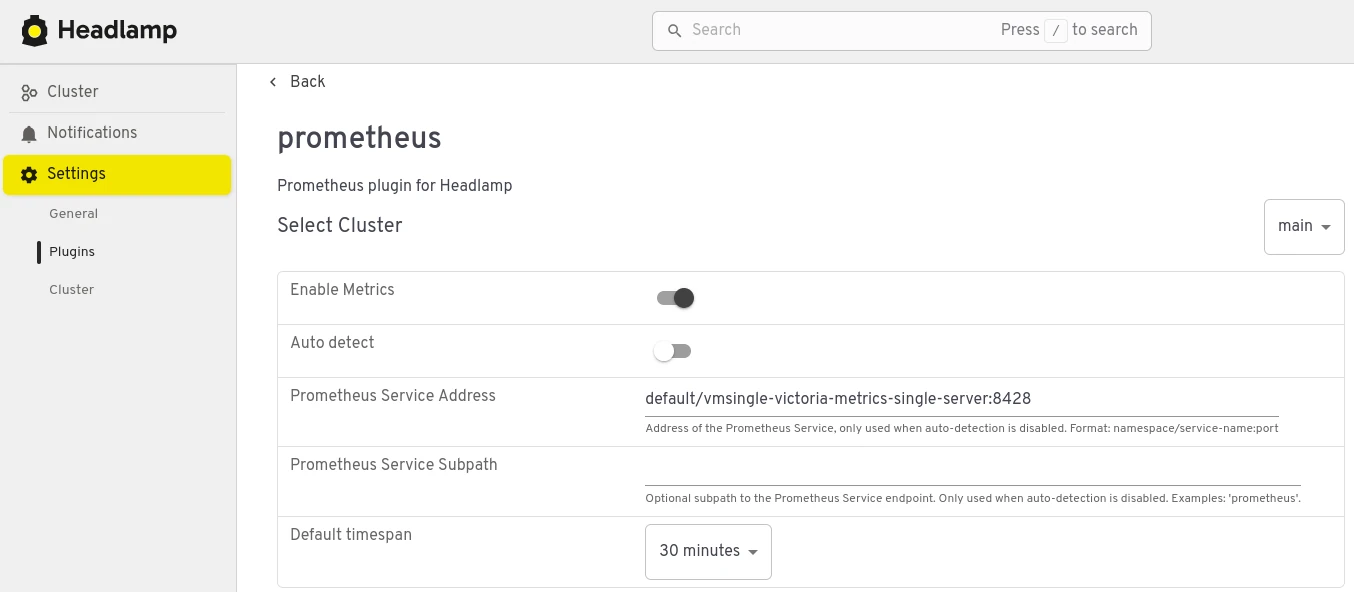

Headlamp is a user-friendly Kubernetes UI focused on extensibility. It supports displaying metrics for Kubernetes resources via a built-in Prometheus plugin. Here’s the plugin configuration to use in-cluster VictoriaMetrics Single - set Prometheus Service Address to <namespace>/<vmsingle service name>:8428
:

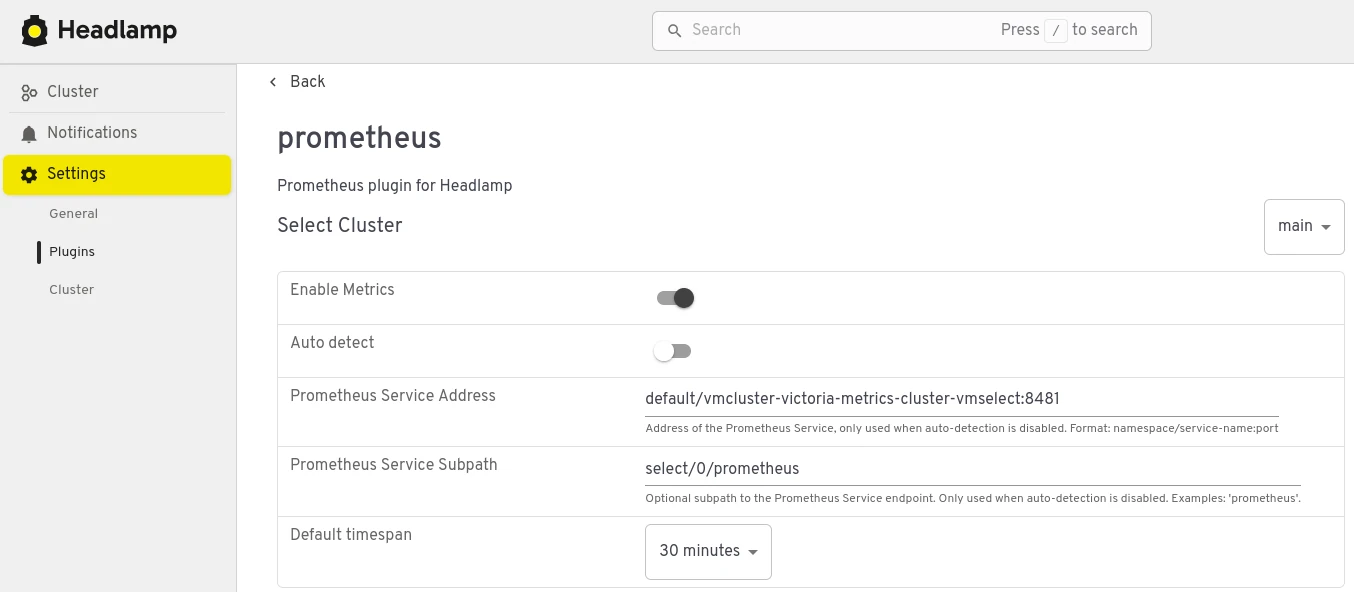

In case of cluster installation, point to the vmselect service (
<namespace>/<vmselect service name>:8481
) and specify the prometheus-compatible subpath select/<tenant id>/prometheus
:

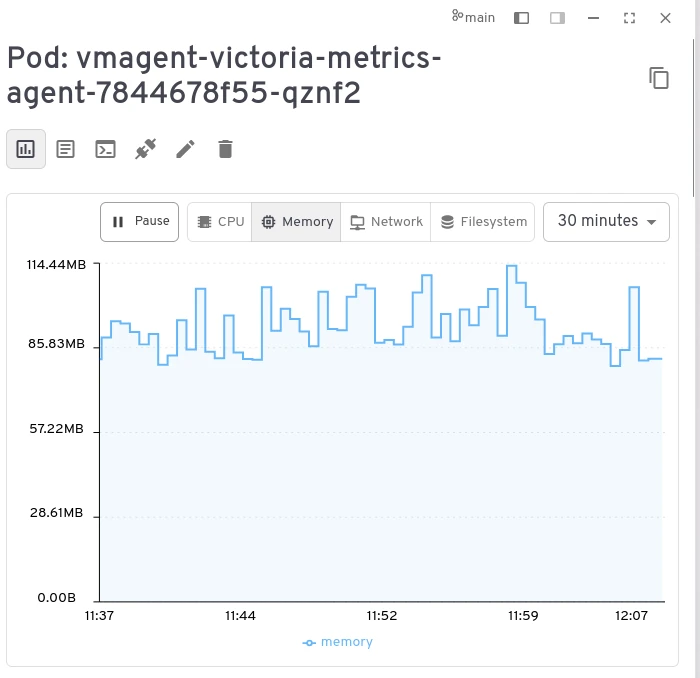

The plugin will display CPU/Memory/Network/Filesystem graphs for k8s resources:
