VLDistributed

VLDistributed is the Custom Resource Definition for orchestrated updates of several VictoriaLogs clusters or single-node instances. It allows you to define and manage components of a distributed VictoriaLogs setup and apply changes to them sequentially, ensuring high availability and minimal disruption.

Note: VLDistributed is an experimental feature and may not be suitable for production environments. API is not yet stabilized and may change in future releases.

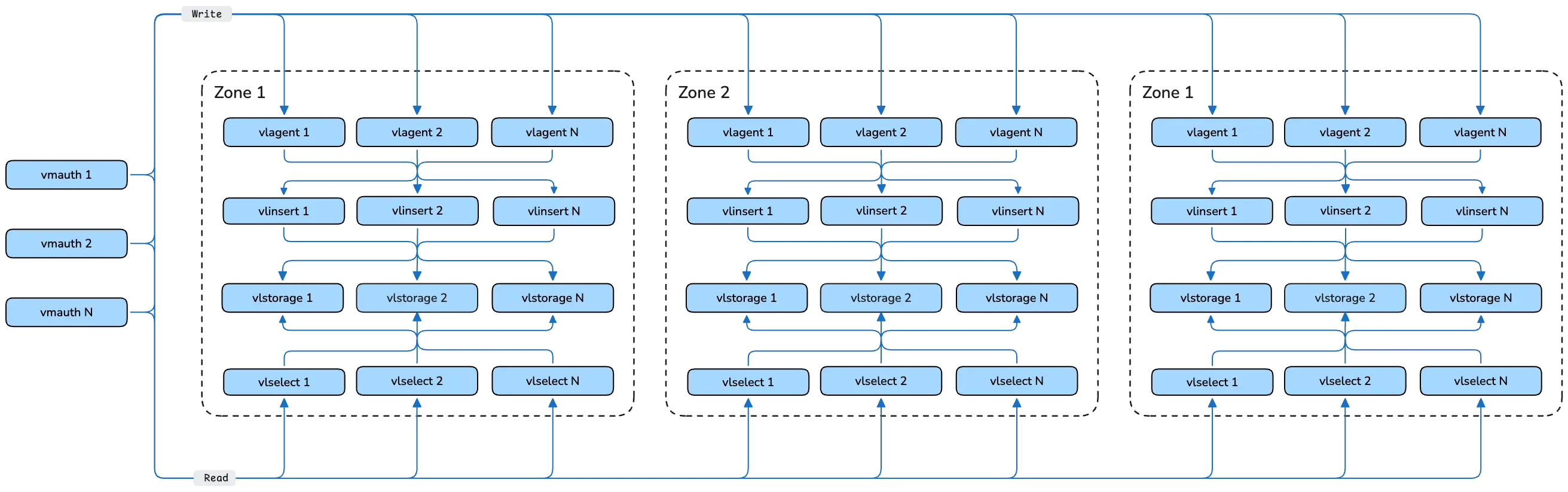

For a high-level overview of VictoriaLogs distributed architecture, refer to the official VictoriaLogs cluster documentation .

Specification #

The VLDistributed resource allows you to configure various aspects of your VictoriaLogs distributed setup. The specification includes:

  • retain: If set to true, the operator will keep managed components during VLDistributed CR removal.
  • paused: If set to true, the operator will not perform any actions on the underlying managed objects. Useful for temporarily halting reconciliation.
  • backendType: Specifies the backend type for all zones. Either VLCluster (default) or VLSingle. All zones must use the same backend type.
  • vmauth: Configuration for a VMAuth instance that acts as a proxy/load-balancer for read and write access to the managed VictoriaLogs backends.
  • zoneCommon: Defines VLDistributedZoneCommon common zone configuration, which is default for each zone resource.
  • zones: Defines the list of VLDistributedZone that form the distributed setup.
  • license: Configures the license key for enterprise features. If provided, it is automatically passed to managed VLAgent and VLCluster instances.

VLDistributedZoneCommon #

  • vlcluster: Common VLDistributedZoneCluster configuration. Only used when spec.backendType: VLCluster.
  • vlsingle: Common VLDistributedZoneSingle configuration. Only used when spec.backendType: VLSingle.
  • vlagent: Common VLDistributedZoneAgent configuration. It buffers and forwards write traffic to the zone backend.
  • remoteWrite: Common remote write settings for VLAgent in each zone. The operator controls the remote write URL.
  • readyTimeout: The readiness timeout for each zone update. Default is 5m.
  • updatePause: Time the operator should wait between zone updates to ensure a smooth transition. Default is 1m.

VLDistributedZone #

Each entry in the zones array includes:

  • name defines name of zone, which is used as default per-zone resource name or can be used in zoneCommon template using %ZONE% placeholder.
  • trafficMode defines allowed traffic mode for a zone: read-write, read-only, write-only, or maintenance.
  • vlcluster defines VLDistributedZoneCluster, that allows either reference an existing VLCluster resource or creates a new one. Only used when spec.backendType: VLCluster.
  • vlsingle defines VLDistributedZoneSingle, that allows either reference an existing VLSingle resource or creates a new one. Only used when spec.backendType: VLSingle.
  • vlagent defines VLDistributedZoneAgent, that allows either reference an existing VLAgent resource or creates one. It receives write traffic from vmauth and sends to VLCluster or VLSingle instances.
  • remoteWrite defines per-zone VLAgent remote write settings. The operator controls the remote write URL.

VLDistributedZoneCluster #

  • name: Optional name of an existing VLCluster or one to be created; when omitted it defaults to zoneCommon.vlcluster.name (where %ZONE% is used to template the zone name) or ${cr.Name}-${zone.name} when unset.
  • spec: A VLClusterSpec object that defines the desired state of a new or referenced VLCluster managed by this resource.

VLDistributedZoneSingle #

  • name: Optional name of an existing VLSingle or one to be created; when omitted it defaults to zoneCommon.vlsingle.name (where %ZONE% is used to template the zone name) or ${cr.Name}-${zone.name} when unset.
  • spec: A VLSingleSpec object that defines the desired state of a new or referenced VLSingle managed by this resource.

Example: Defining a VLDistributed resource with VLCluster backend:

      apiVersion: operator.victoriametrics.com/v1alpha1
kind: VLDistributed
metadata:
  name: my-distributed-logs
spec:
  vmauth:
    name: my-distributed-vmauth
    spec:
      replicaCount: 1
      unauthorizedUserAccessSpec:
        targetRefs:
          - name: read
          - name: write
  zoneCommon:
    vlagent:
      spec:
        replicaCount: 1
    vlcluster:
      spec:
        vlstorage:
          replicaCount: 1
        vlselect:
          replicaCount: 1
        vlinsert:
          replicaCount: 1
  zones:
    - name: zone-a
    - name: zone-b
      vlcluster:
        spec:
          vlselect:
            replicaCount: 2

Example: Defining a VLDistributed resource with VLSingle backend:

      apiVersion: operator.victoriametrics.com/v1alpha1
kind: VLDistributed
metadata:
  name: my-distributed-log-singles
spec:
  backendType: VLSingle
  vmauth:
    name: my-distributed-vmauth
    spec:
      replicaCount: 1
      unauthorizedUserAccessSpec:
        targetRefs:
          - name: read
          - name: write
  zoneCommon:
    vlagent:
      spec:
        replicaCount: 1
    vlsingle:
      spec:
        retentionPeriod: "30d"
  zones:
    - name: zone-a
    - name: zone-b
      vlsingle:
        spec:
          retentionPeriod: "14d"

Ownership and references #

VLDistributed creates or becomes an owner of existing VMAuth, VLAgent, VLCluster, and VLSingle resources and by default it removes all resources it owns on CR deletion. To remove VLDistributed but keep all owned resources set spec.retain: true before VLDistributed removal.

Current shortcomings #

  • Only one VMAuth can be managed per VLDistributed.
  • All objects must belong to the same namespace as the VLDistributed.
  • Objects must be referred to by name; label selectors are not supported for VMAuth, VLAgent, VLCluster or VLSingle selection.
  • VLAgent, VLCluster and VLSingle names must be unique across zones within one VLDistributed resource.
  • All zones must use the same backend type (controlled by spec.backendType); mixing VLCluster and VLSingle zones in one VLDistributed is not supported.
  • VLCluster read targets use vlselect API paths (/select/...); VLSingle read targets use single-node API paths (/select/...). Both are exposed as a read backend.

Authorization #

By default VLDistributed provides no access to read/write endpoints. Instead it provides preconfigured named backends read and write, which can be referenced in spec.vmauth.spec.unauthorizedUserAccessSpec section to provide unauthorized access or in VMUser spec for authorized access.

To provide unauthorized access to the distributed setup, add spec.vmauth.spec.unauthorizedUserAccessSpec section, where read and write backends should be referenced:

      spec:
  vmauth:
    spec:
      unauthorizedUserAccessSpec:
        targetRefs:
          - name: read
          - name: write

With configuration above both read and write endpoints become available for unauthorized access.

In order to configure authorization, spec.vmauth.spec should have user selectors properly configured and VMUser CRs should reference read and write backends in targetRefs:

      apiVersion: operator.victoriametrics.com/v1beta1
kind: VMUser
metadata:
  name: example
spec:
  username: simple-user
  password: simple-password
  targetRefs:
    - name: write
    - name: read
