VMDistributed #

VMDistributed is the Custom Resource Definition for orchestrated updates of several VictoriaMetrics clusters. It allows you to define and manage cluster components of a distributed VictoriaMetrics setup and apply changes to them sequentially, ensuring high availability and minimal disruption.

Note: VMDistributed is an experimental feature and may not be suitable for production environments. API is not yet stabilized and may change in future releases.

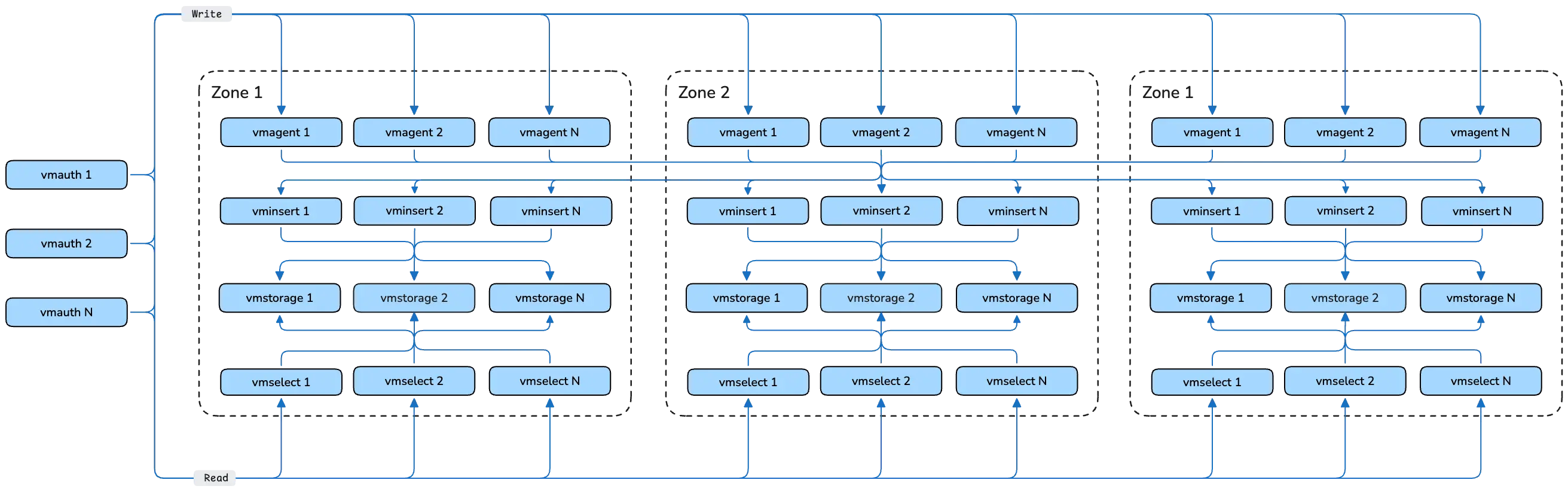

For a high-level overview of VictoriaMetrics distributed cluster architecture, refer to the official VictoriaMetrics documentation .

Specification #

The VMDistributed resource allows you to configure various aspects of your VictoriaMetrics distributed cluster. The specification includes:

  • retain: If set to true, the operator will keep managed components during VMDistributed CR removal.
  • paused: If set to true, the operator will not perform any actions on the underlying managed objects. Useful for temporarily halting reconciliation.
  • vmauth: Configuration for a VMAuth instance that acts as a proxy/load-balancer for the vmselect and vmagent components of the managed clusters. It acts as a global read and write path entry point.
  • zoneCommon: Defines VMDistributedZoneCommon common zone configuration, which is default for each zone resource.
  • zones: Defines the list of VMDistributedZone that form the distributed setup.
  • license: Configures the license key for enterprise features. If provided, it is automatically passed to the managed VMAuth, all VMAgent, and VMCluster instances.

VMDistributedZoneCommon #

  • readyTimeout: The readiness timeout for each zone update. Default is 5m.
  • updatePause: Time the operator should wait between zone updates to ensure a smooth transition. Default is 1m.

VMDistributedZone #

Each entry in the zones array includes:

  • name defines name of zone, which is used as for default per zone resource name or can be used in zoneCommon template using %ZONE% placeholder.
  • vmcluster defines VMDistributedZoneCluster, that allows either reference an existing VMCluster resource or creates a new one.
  • vmagent defines VMDistributedZoneAgent, that allows either reference an existing VMAgent resource or creates a one. It receives write traffic from vmauth and sends to vmcluster instances.

VMDistributedZoneCluster #

  • name: Optional name of an existing VMCluster or one to be created; when omitted it defaults to zoneCommon.vmcluster.name (where %ZONE% is used to template the zone name) or ${cr.Name}-${zone.name} when unset.
  • spec: A vmv1beta1.VMClusterSpec object that defines the desired state of a new or referenced VMCluster managed by this resource.

Example: Defining a VMDistributed resource:

      apiVersion: operator.victoriametrics.com/v1alpha1
kind: VMDistributed
metadata:
  name: my-distributed-cluster
spec:
  vmauth:
    name: my-distributed-vmauth
    spec:
      replicaCount: 1
      unauthorizedUserAccessSpec:
        targetRefs:
          - name: read
          - name: write
  zoneCommon:
    vmagent:
      spec:
        replicaCount: 1
    vmcluster:
      spec:
        vmstorage:
          replicaCount: 1
          storage:
            volumeClaimTemplate:
              spec:
                resources:
                  requests:
                    storage: 10Gi
        vmselect:
          replicaCount: 1
        vminsert:
          replicaCount: 1
  zones:
    - name: zone-a
    - name: zone-b

VMDistributed and distributed chart #

VMDistributed can be used alongside the resources created by the distributed chart. The distributed chart provides a convenient way to create multiple VMCluster objects and surrounding resources.

In order to update VMClusters in a coordinated manner, add VMCluster resources to the zones list:

      spec:
  vmauth:
    spec:
      replicaCount: 1
      unauthorizedUserAccessSpec:
        targetRefs:
          - name: read
          - name: write
  zoneCommon:
    vmagent:
      name: vmagent-%ZONE%
      spec:
        replicaCount: 1
    vmcluster:
      name: vmcluster-%ZONE%
      spec:
        replicationFactor: 1
        requestsLoadBalancer:
          enabled: true
          spec:
            nodeSelector:
              kubernetes.io/os: linux
            replicaCount: 2
            topologySpreadConstraints:
            - maxSkew: 1
              topologyKey: kubernetes.io/hostname
              whenUnsatisfiable: ScheduleAnyway
        retentionPeriod: "14"
        vminsert:
          nodeSelector:
            kubernetes.io/os: linux
          port: "8480"
          replicaCount: 2
          topologySpreadConstraints:
          - maxSkew: 1
            topologyKey: kubernetes.io/hostname
            whenUnsatisfiable: ScheduleAnyway
        vmselect:
          nodeSelector:
            kubernetes.io/os: linux
          port: "8481"
          replicaCount: 2
          topologySpreadConstraints:
          - maxSkew: 1
            topologyKey: kubernetes.io/hostname
            whenUnsatisfiable: ScheduleAnyway
        vmstorage:
          nodeSelector:
            kubernetes.io/os: linux
          replicaCount: 2
          storageDataPath: /vm-data
          topologySpreadConstraints:
          - maxSkew: 1
            topologyKey: kubernetes.io/hostname
            whenUnsatisfiable: ScheduleAnyway
  zones:
    - name: central
    - name: east
    - name: west

Note that VMDistributed will create a single VMAuth, which encapsulates rules for both read and write access to the zones, unlike the distributed chart which creates separate VMAuths for read and write paths. This provides a convenient way to migrate the traffic between VMDistributed and distributed helm chart implementations.

Ownership and references #

VMDistributed creates or becomes an owner of existing VMAuth, VMAgent and VMCluster resources and by default it removes all resources it owns on CR deletion. To remove VMDistributed but keep all owned resources set spec.retain: true before VMDistributed removal.

Current shortcomings #

  • Only VMCluster objects are supported for distributed management.
  • Only one VMAuth can be managed per VMDistributed.
  • All objects must belong to the same namespace as the VMDistributed.
  • Objects must be referred to by name; label selectors are not supported for cluster selection.

Authorization #

By default VMDistributed provides no access to read/write endpoints. Instead it provides preconfigured named backends read and write, which can be referenced in spec.vmauth.spec.unauthorizedUserAccessSpec section for provide unauthorized access or in VMUser spec for authorized access.

To provide unauthorized access to the distributed setup need to add spec.vmauth.spec.unauthorizedUserAccessSpec section, where read, write backends should be referenced:

      spec:
  vmauth:
    spec:
      unauthorizedUserAccessSpec:
        targetRefs:
          - name: read
          - name: write

With configuration above both read and write endpoints become available for unauthorized access

In order to configure authorization spec.vmauth.spec should have user selectors properly configured and VMUser CRs should reference read and write backend in targetRefs:

      apiVersion: operator.victoriametrics.com/v1beta1
kind: VMUser
metadata:
  name: example
spec:
  username: simple-user
  password: simple-password
  targetRefs:
    - name: write
    - name: read
